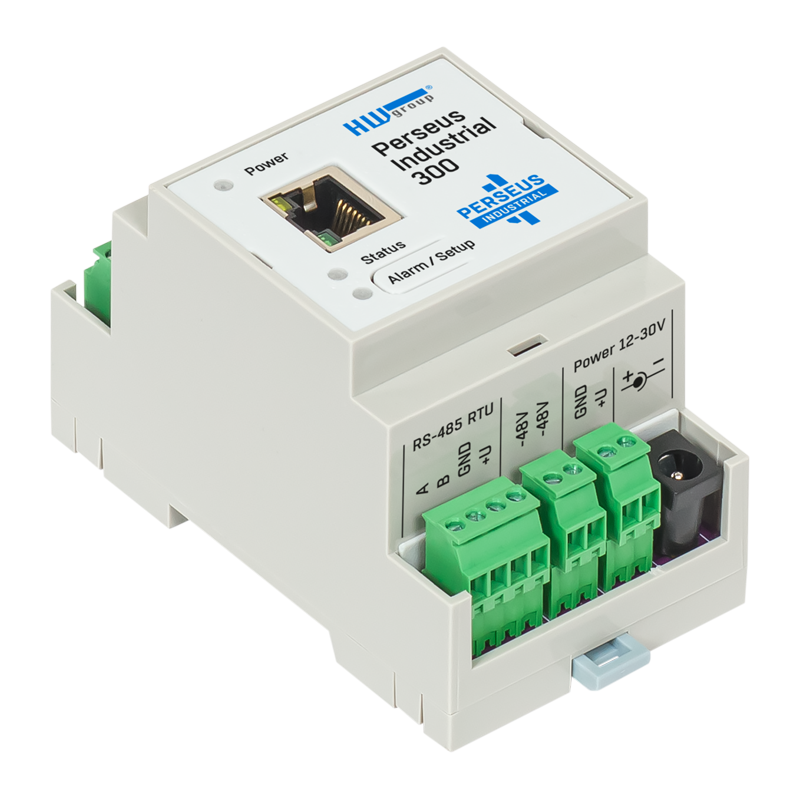

Perseus Industrial 300 is a scalable DIN rail LAN monitoring and control unit for industrial, infrastructure and environmental applications. It connects digital Inputs/Outputs and HW group RTU sensors or third-party meters via LAN or Modbus/RTU. With wide alerting options, open APIs and Portal support, it is ideal for professional remote monitoring and site automation.
Expandable architecture of Perseus 300 based on RTU and DIN rail expanders allows connection of multiple Inputs/Outputs in various combinations. Perseus Industrial 300 combines data from external physical sensors / detectors / meters with data from other HWg devices connected via LAN. Local conditions, Lua scripting, calendar or periodic scheduler help to analyze the measured data.
The Perseus platform supports wide alerting options (Email, SNMP Trap), Open API (BACnet, Modbus/TCP, MQTT).
Perseus Industrial 300 can be connected to the Portal (SensDesk Technology). Together with the Portal it is a powerful solution for professional applications.
Meters API allows Perseus Industrial 300 to collect values from other HWg devices (e.g. STE2 R2) over LAN and use them for local conditions, alerts, scripts or Portal visualization. This makes Perseus not only a sensor device, but also a local data concentrator for distributed monitoring systems.

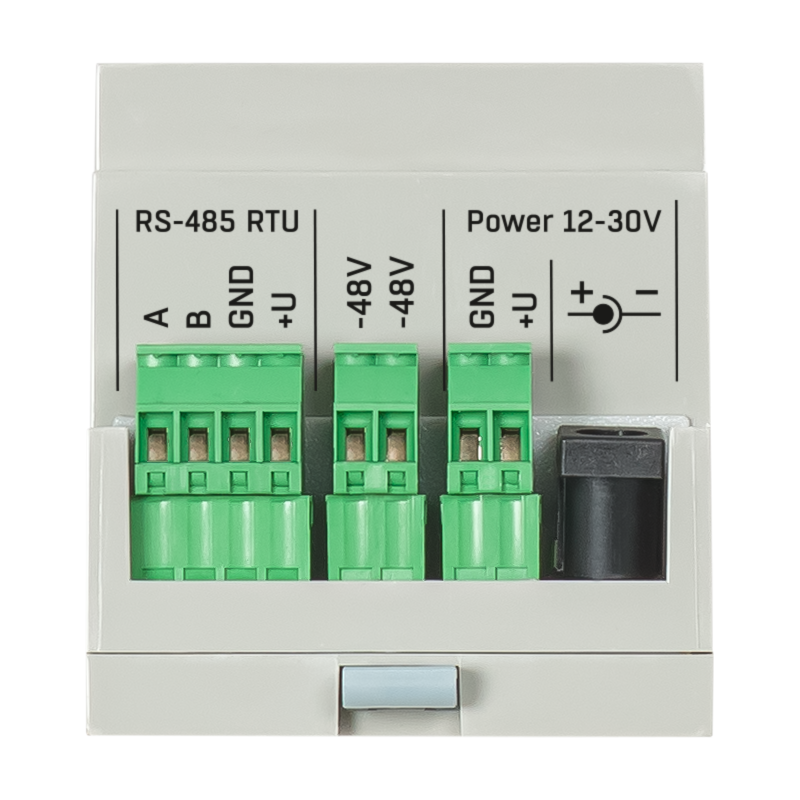

External sensors can be connected to RTU (RS-485) terminal block.
- Scalable DIN-rail architecture with RTU expanders
- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
- RTU (RS-485 Modbus-RTU): 1x terminal block (with 12V)
- DO (Digital Outputs): 1x DO (relay)
- DI (Digital Inputs): 3x DI (dry contact)
- S0 pulse DI (Digital Input) compliant with EN 62053-31, Class B
- Detectors: Smoke, door contact, motion, power presence, etc
- Device Alerts: SNMP, email, (SMS / Calls with external SMS GW)
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert
- Open API: SNMP, XML, Modbus/TCP, MQTT, BACnet
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
- Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
- Data processing: Condition & Actions, Virtual sensors, Scheduler
- Remote Configuration with SensDesk Technology
Typical Applications
- Technical room and infrastructure monitoring
- Warehouse, pharmaceutical and storage environment monitoring
- Remote machine and site monitoring
- Telco cabinet / BTS monitoring
- Greenhouse and agricultural monitoring
Additional information
| Weight | 0.500 kg |
|---|
Specifications
What's Included
Power Adaptor or Sensors not included
